Technical Specifications for Industrial Battery Charge

AC Input: 415V +-10%, 50Hz +- 5%, 3 Phase Star Connected

DC Output: Adjustable range of voltage: Trickle – 2.25 V/cell Across battery terminal: Boost – 2.30 V/cell (For Ni-Cd, Plante, and VRLA Battery) : Voltage across battery terminals: +-1% from 0 to 100% Load changes specified AC Mains variation. : Current Rating

• Across Battery Terminal: 10% of Battery AH.
• Load + Battery Terminal: 10% of Battery AH + Load

Regulation: +-1% digitally controlled

Ripple content: <2% RMS

Charger Efficiency:

• For 3 Phase : >85%
• For 1 Phase : >75%

Meters: AC Mains, DC Voltage, Current (All with selector Switch)

Cooling: Natural (or) Forced

Cabinet: Free standing steel cabinet 1.6/2.0 mm gauge sheet steel or as per customer requirement.

Ambient Temp. :  50 degree C.

AABM: Programmable Timer for 7/15/30/45 days with selectable Time of 15/30/45/60 mins. for automatic charge and discharge cycle.

Annunciation: Digitally operated with keypad for the purpose of fault acceptance, reset & test.

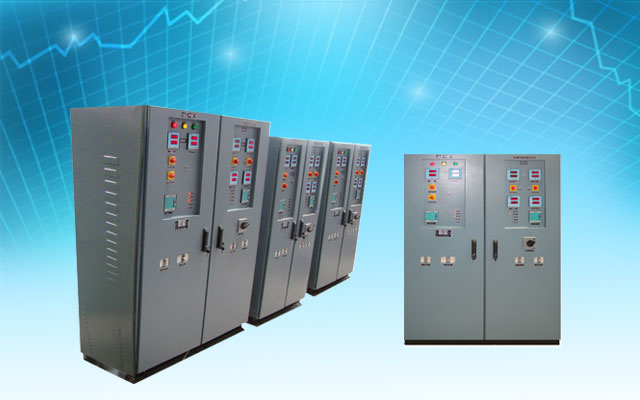

Industrial Smart Battery Charger

Configurations:

1. Float cum Boost (FCBC)
2. Float and Boost (FC and BC)
3. Float and Float Cum Boost (FC and FCBC)
4. Dual Float cum Boost (DFCBC)
5. All redundant versions of above
6. Applications/Customer specific configuration

Modes:

There are two modes of operation provided viz:

1. Auto Mode
2. Manual Mode

Any of the either modes can be selected for operation at any time by selector switch provided.
